Zulu built 1903 by Stephen, W & G Boatbuilder, Banff

Ensign House flag

173

National Historic Fleet


Fishing Vessel

Drifter


Zulu

Anstruther


Museum based

Museum: dry berth


No

No


31/07/1996

09/02/2015


Web site

www.scotfishmuseum.org

Gallery


Propulsion

Motor

Inboard


None

None


Dimensions

To be confirmed

19.84 feet (6.05 metres)


78.69 feet (24.00 metres)

7.21 feet (2.20 metres)


0.00


History

RESEARCH is the sole surviving large zulu, a first class herring drifter of the type once numerous along the shores of the Moray Firth. She was built as Heather Bell (BF 1206) in 1903 by W & G Stephen, of Banff, for three co-owners – the fishermen George Paterson, William Lyall and Andrew Lyall, all of Macduff in the County of Banff. She had a 62ft keel but the long raking stern gave her an overall length of 78ft. The new boat was registered on 6 May 1903 and her first skipper was Alexander Paterson. Equipped with a steam capstan for hauling the drift nets, Heather Bell fished under sail for herring in the summers until April 1912, when the Banff registration was closed and her new owners (William and John Ritchie, of Rosehearty) registered her at Fraserburgh (FR 498). A 30hp auxiliary Kelvin engine was installed but later the sails were discarded when a second 30 hp Kelvin was added. In the early 1920s these engines were replaced by twin 60hp Kelvins, which powered her for over forty years.

After several changes of ownership at Fraserburgh she went north to Shetland in 1935, having been bought by a crew from the island of Whalsay, and was renamed RESEARCH (LK 62) after the crew’s previous vessel. She continued to fish successfully until the Second World War, when she was requisitioned by the Admiralty to carry supplies around the Shetlands, and also saw service at Scapa Flow, Orkney. In 1945 RESEARCH resumed her fishing career under skipper Robert Polson, and in the following year was fitted with a seine net winch which allowed her to take part in the new winter fishery which had developed off Shetland during the war years. In 1955 her younger crew members left for a new vessel and RESEARCH was laid up in the subsequent winters but continued to fish for herring in the summers. Remarkably she remained a very successful boat, and in the late 1950s recorded her biggest catch of 211 cran. In 1968, by which time her skipper Robert Polson was over 70 years old, she completed her last season and was laid up.

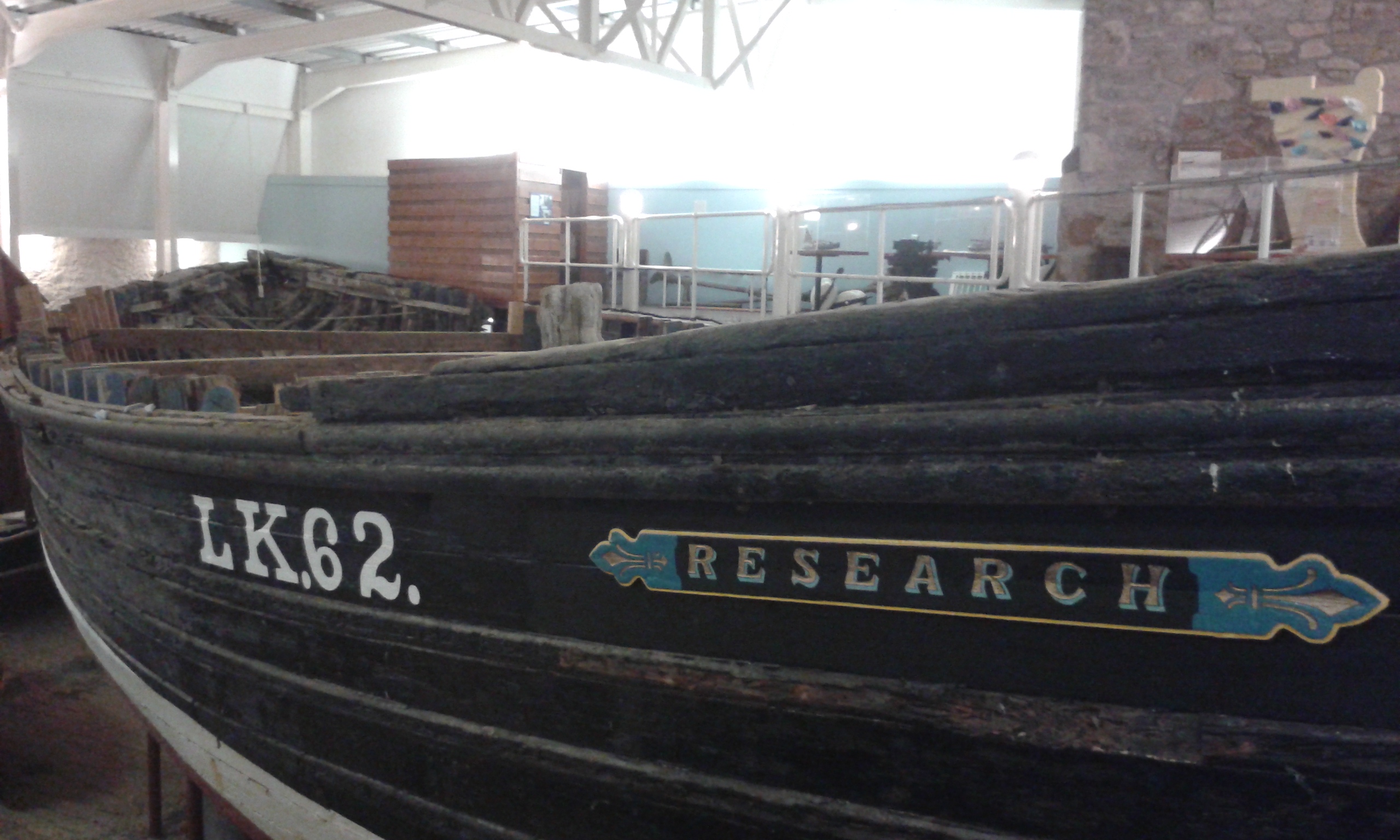

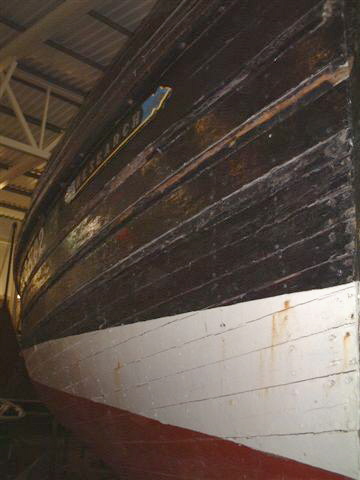

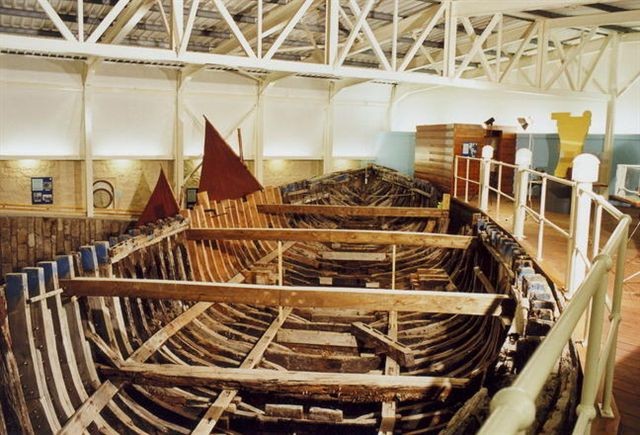

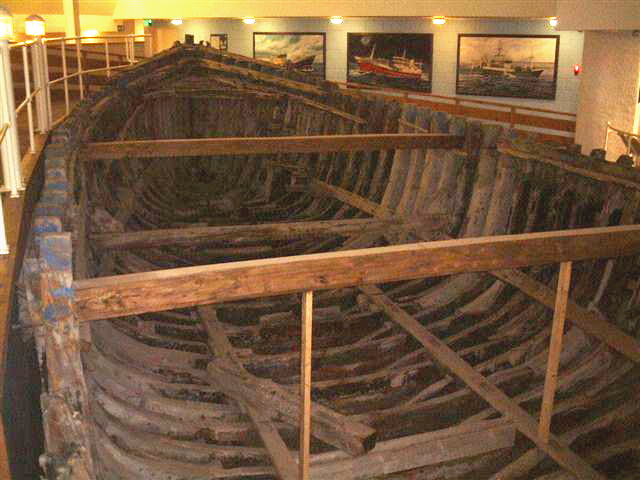

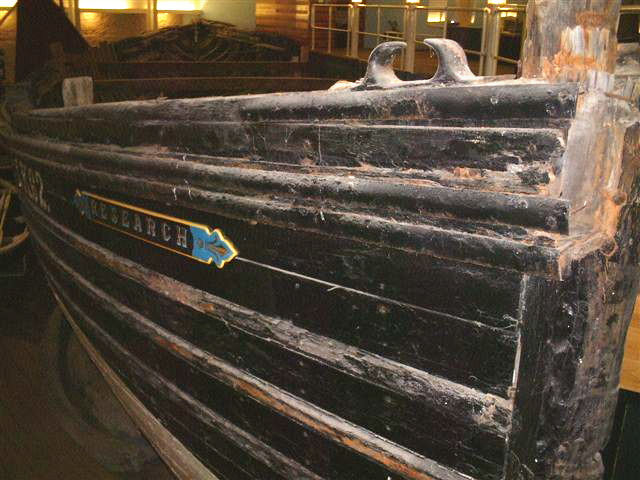

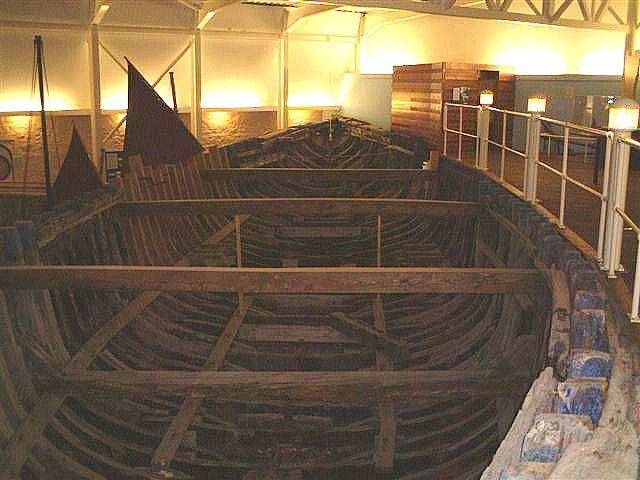

In 1979 the Scottish Fisheries Museum mounted a rescue operation and towed the boat back to Anstruther with the intention of restoration back to her original appearance. However she sank shortly afterwards and after being raised was refitted at Miller’s boatyard in St Monans in 1984 at a cost of £24,000, with a new keel, some new planks and the internal doubling of some frames. She went down again in the winter storms of 1995-96 and lay under water for three months. With the help of a £35,800 Heritage Lottery Fund grant she was lifted into a steel cradle at Anstruther and a project to display her in a new gallery, with other smaller craft, was embarked upon. In addition to local fundraising the project benefitted from a further grant of £664,000 from the Heritage Lottery Fund in 1997/98. The new gallery opened in April 2000 and RESEARCH is displayed as a bare undecked and unrigged hull.

Source: Historic Sail, Britain's surviving working craft, Paul Brown, the History Press.

Previous names

  1. 1903 – 1933Heather Bell

Subsequent Developments

  1. January 2011 A lazer survey of the hull was conducted by Headland Archaeology in September 2010 to gauge the effects of long-term indoor storage on the vessel and to assess the need for additional support to the hull. This has flagged up some issues and additional funding will be sought to put measures into place based on the findings. Source: Scottish Fisheries Museum

Key dates

  1. 1903 Built by W. & G Stephen of Banff on the Moray Firth and named HEATHER BELL
  2. 1903-33 Fished out of Fraserburgh
  3. 1930s After earlier experimentation with a Kelvin auxiliary power unit she was fitted with twin 60hp engines
  4. 1933 Sold to a Shetland firm and renamed RESEARCH
  5. 1933-68 Fished out of Whalsay in Shetland
  6. 1939-45 Admiralty service in Shetland and Scapa Flow
  7. 1968 Laid up and her condition began to deteriorate

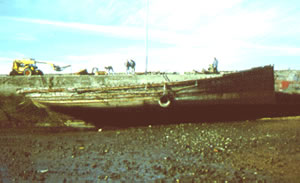

  8. 1979 The Scottish Fisheries Museum mounted a rescue operation and towed the boat back to Anstruther
  9. 1984 Fitted with a new keel at Miller’s Boatyard in St Monans
  10. 1979-97 Laid up in Anstruther harbour
  11. 1995-96 Sank in winter storms and  lay under water for 3 months before being lifted into a steel cradle
  12. 1999 Transported to the Scottish Fisheries Museum’s new purpose-built gallery
  13. 2000 Zulu Gallery opened by Deputy Minister for Culture and Sport
  14. 2010 A laser survey of the hull was conducted by Headland Archaeology

Bibliography

  1. 1995 St Andrews Citizen Lightship may not be only vessel bound for new home
  2. 1997 Classic Boat The Mighty Zulu
  3. 1997 East Fife Mail Wreck or Relic?
  4. 1998 The zulu herring drifter: case study of historic vessel presevation at the Scottish Fisheries Museum - K Newland
  5. 2002 The Fleet: a guide to the historic vessels at the Scottish Fisheries Museum - Alastair Walker

Grants

  1. 1996/97 The Heritage Lottery Fund awarded £35,800 for purpose built building
  2. 1997/98 The Heritage Lottery Fund awarded £664,000 for acquisition of premises
