Mary Rose

Carrack built 1511 by Unknown

Ensign House flag


National Historic Fleet

Fighting Vessel




Museum based













To be confirmed

25.57 feet (7.80 metres)

110.33 feet (33.65 metres)

15.08 feet (4.60 metres)



MARY ROSE was carvel-built with twenty heavy and sixty light guns comprising a mixture of muzzle-loading cast bronze and breech-loading cast iron guns. With a complement of some 500 men, MARY ROSE was built for Henry VIII and named for his sister, Mary. The first of her name in the British fleet, MARY ROSE took part in Henry’s first (1512-1514) and second French Wars (1522-1525), always as the flagship of the Lord High Admiral - his favourite warship. Her tonnage changed from some 600 tons in 1512 to 700 tons at the time of her sinking. The portion of the ship that was recovered is estimated to be equal to some 280 tons. The ship appears to have had a hold and four principal decks, the orlop, the main, the upper and the forecastle, although the latter might have had more than one deck.

The keel is constructed from three pieces of elm, scarfed together and bolted to the oak keelson, also in three sections and which sits on top of the floor timbers, with the main mast step acting as the central sector. Just aft of the mast step, by the keelson, there is a circular hole to make room for the lower end of the pump. The majority of the frames do not appear to be attached to the floor timbers or to each other but are held in place by the longitudinal stringers, and the outer planking of the hull, in oak, is fastened through the frames, stringers and ceiling planking by hand-cut wooden treenails, which have been hammered into pre-drilled holes and might be up to a metre in length. The ship underwent two major refits, the first in Portsmouth in 1527-28 which required the construction of a new dock, and a later one in about 1536, when it is assumed her burden was increased to 700 tons.

The ship was to some extent re-built at this time, to give her a complete lower deck of guns with hinged ports, almost the first British warship to be so equipped. A considerable degree of extra strengthening was added to the vessel and the evidence from dendrochronology strongly suggests that several riders, transom knees, and diagonal and vertical braces were inserted during these two refits, presumably to support new and heavier guns.

In 1544-45, MARY ROSE was active in Henry’s third French war. When leading the advance against a much larger French invasion fleet off Portsmouth on 19 July 1545, possibly arising from a simple ship-handling miscalculation, she appears to have been caught by a flaw of wind. Late in the day she tried to tack and was swamped through her lower deck gun ports, sinking in some forty feet of water in a very short space of time with the loss of virtually her whole ship’s company of nearly 500 men. In the succeeding weeks, efforts were directed to raise the vessel but these proved fruitless. It was 437 years before she was brought to the surface, although in 1836 divers John and Charles Dean found the site and recovered a bronze cannon. In the late 1960s, using modern side-scan sonar and other advanced technologies capable of penetrating the deep silt, the ship was formally identified and steps taken to excavate the site. Trial excavations between 1971 and 1978 showed that the ship was lying on her starboard side in the soft upper sediment at an angle of some 60 degrees. Whilst the originally exposed port side had been extensively eroded by marine organisms and mechanical degradation, the hard grey clay covering the site had effectively sealed the surviving starboard portion and protected it from further erosion. In the years between 1979 and 1982, the site was fully excavated, surveyed and recorded. Over 19,000 artefacts were recovered and the remains of the ship were prepared for recovery, which took place on 11 October 1982. The hull has since undergone a process of conservation and stabilisation, employing the most advanced scientific methods and processes. As time has passed, timbers recovered from the seabed have also been conserved and where possible reinstated. In 2003-2004, further excavations of the site were undertaken using the most modern technologies and, in 2005, a 5 metre long section of the original stem was brought ashore, together with several timbers, smaller artefacts and a 7 metre long anchor. The site was then sealed with a membrane and 100 tons of sand, to be made safe and secure for future generations.

Source; Campbell McMurray, Advisory Committee, March 2009.

J Gardiner, Before the Mast: Life and Death Aboard the Mary Rose (2005) pub: Mary Rose Trust Ltd
Peter Marsden, For Future Generations (2003)
Geoffrey Moorhouse, Great Harry's Navy: How Henry VIII gave England Sea Power (2005) pub: Weidenfeld and Nicolson
Valerie Fenwick & Alison Gale, Historic Shipwrecks (1998) pub: Tempus Publishing
Alexander McKee, How we found the Mary Rose (1982) pub: Souvenir Press
Alexander McKee, King Henry VII's Mary Rose (1973) pub: Souvenir Press
C Knighton & D Loades, Letters from the Mary Rose (2002) pub: Sutton Publishing
Nicholas Rodger, Safeguard of the Sea: A Naval History of Britain (Volume 1, 1998, pp165,168) pub: Harper Collins
Peter Marsden, Sealed by Time (2003) pub: Mary Rose Trust Ltd
Ian Friel, The Good Ship (1995) pub: British Museum Press
Margaret Rule, The Mary Rose (1982) pub: Conway Maritime Press
Ernle Bradford, The Story of the Mary Rose (1982) pub: Hamish Hamilton
Classic Boat (December, 2010) Mary Rose Museum - �16.3m museum begins

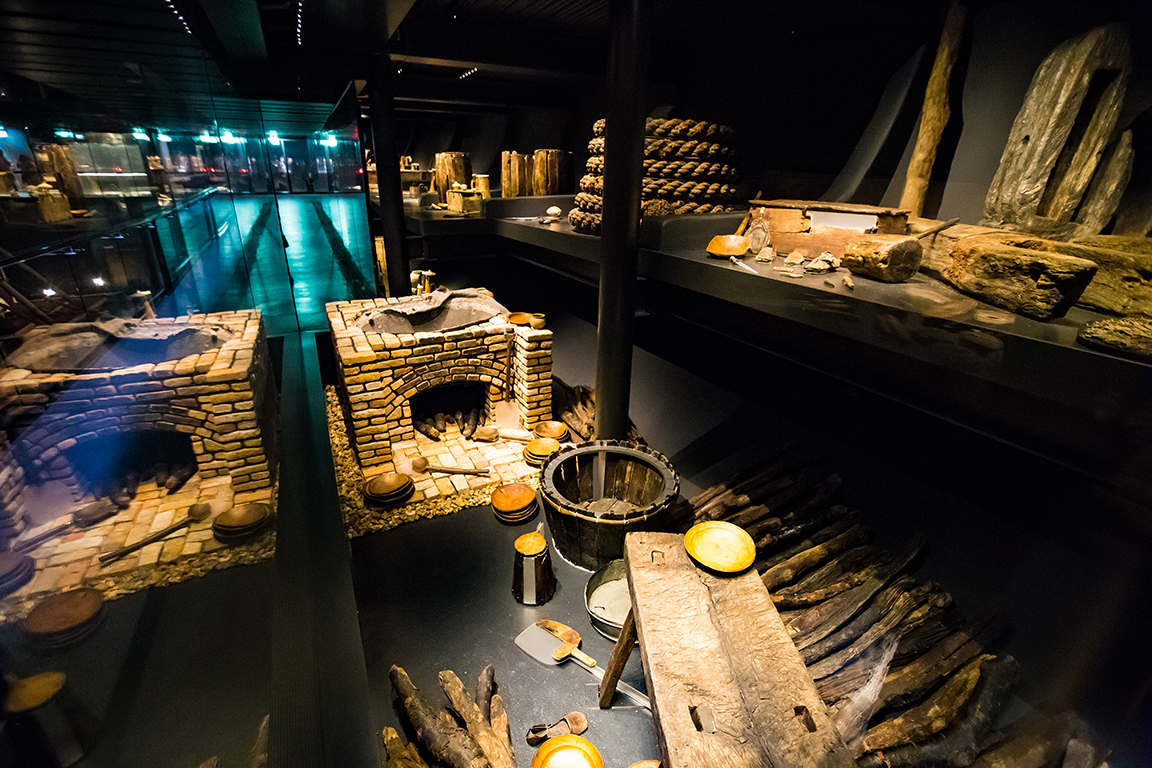

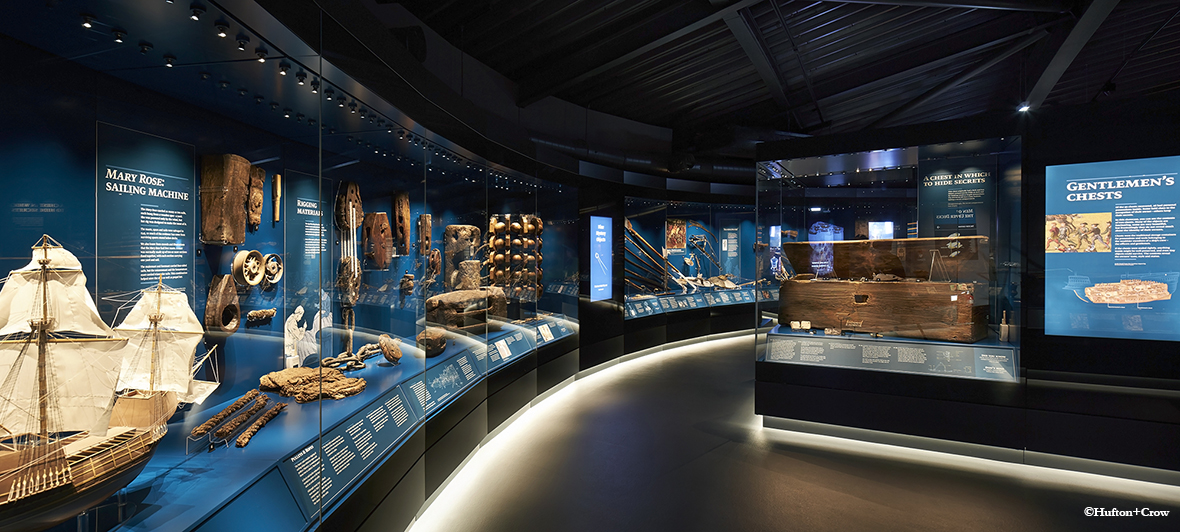

As the only 16th century warship in the world to be recovered from the seabed after nearly 500 years, the remains of the ship together with her 19,000 artefacts including long bows and arrows, clothing, jewellery, musical instruments, medical equipment, domestic items of tableware, as well as ship’s gear such as rigging blocks, navigation equipment, ship’s bell etc, forms a unique and immediately stunning record of maritime life and times in Tudor England. Her history touches on the social, economic and religious circumstances of ordinary people, to create an experience which has been said is akin to stepping into a Holbein painting.

The recovery of MARY ROSE and her artefacts was the largest underwater excavation ever undertaken. Subsequently, while the hull has undergone a permanent process of conservation and stabilisation employing the most advanced scientific methods and processes, the project has acquired world-wide renown for its path-breaking contributions to the development and progress of maritime archaeology and academic scholarship in the new science of conservation in wood, iron and leather, etc. Having started his reign ambitiously with the creation of MARY ROSE, there has been a tendency to credit Henry VIII with an instinctive appreciation of the importance to the state of a formidable navy. But even if he was not a naval visionary, he was nevertheless the first monarch to give it a combatant emphasis and it is now generally accepted that he probably did most to create the first English fighting fleet and the administration, and the beginnings of the logistical structure to support it.

It is through this important association that the MARY ROSE can claim to have significance beyond even her profound intrinsic interest as an artefact, the only recovered 16th century warship. MARY ROSE was a large vessel for her time. Among other things she demonstrates that English shipwrights of this period were able to build vessels on this scale, and to do so on the skeleton form of construction. Her carvel build suggests that clinker building was obsolete - at least for great state warships. But in other important ways she marks a key stage in the transition between the use of a vessel merely capable of supporting guns and one expressly built to carry large guns close to the water-line, thereby making her a critically important vessel to study in order to understand the evolution of the fighting ship. MARY ROSE enjoys a revolutionary status as a vessel expressly designed, or certainly following her rebuilding and refitting in 1527 and 1536, extensively adapted for warfare, for a key development in this context was the invention of the hinged gun port, which permitted the introduction of the continuous gun deck and the firing of broadsides. Ships of war in this era evolved from something resembling floating castles fighting land battles at sea to become mobile citadels of fire power, platforms for heavy cannon, and the MARY ROSE as rebuilt in 1536 was an early and prime example of this new breed of ship, with a complete line of gun ports.

Subsequent Developments

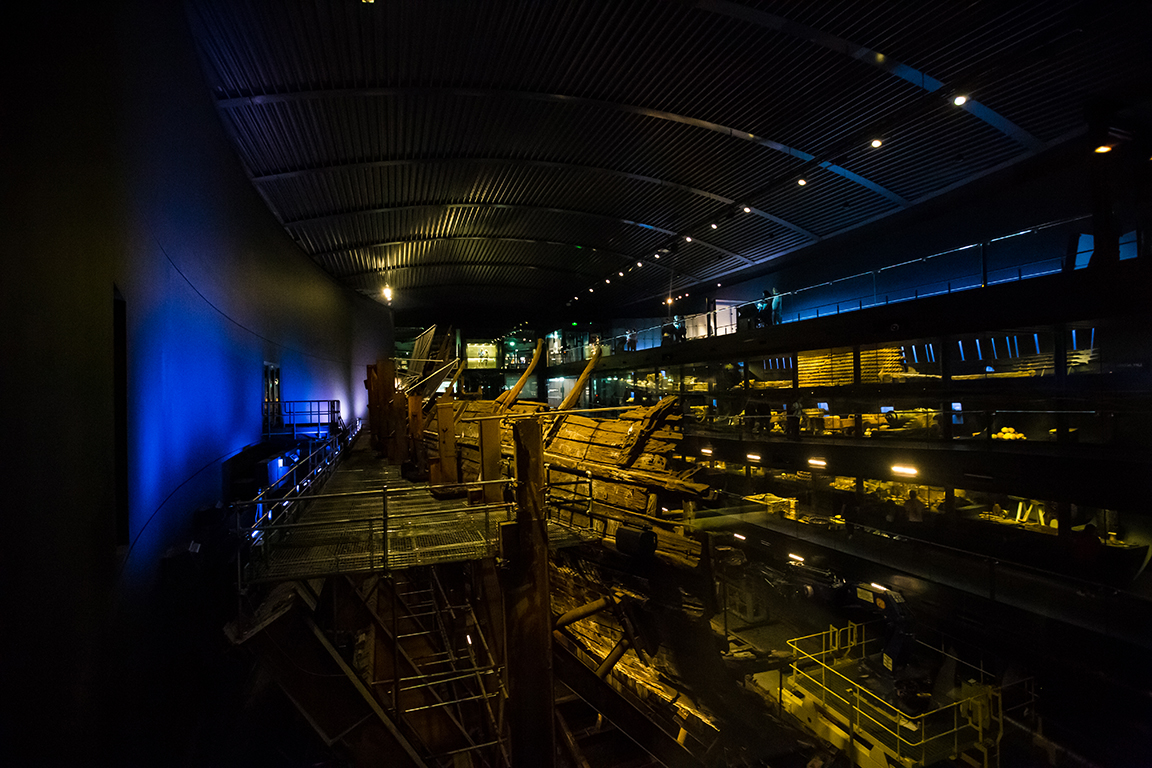

  1. February 2012 The museum remains open by the Ship Hall is now closed and work has started on enveloping it in the brand new museum to open in Autumn 2012

Key dates

  1. 1510 Probably laid down early this year
  2. 1511 Launched and fitted out, possibly on the Thames
  3. 1512-1514 Took part in the First French War
  4. 1522-1525 Took part in the Second French War
  5. 1527 First major refit, Portsmouth
  6. 1536 Second major refit, the Thames
  7. 1545 Sunk in the Solent with great loss of life during engagement in the Third French War
  8. 1836 Divers discovered wreck and recovered one bronze cannon
  9. 1965 Modern search for the wreck began
  10. 1967 Mary Rose Committee obtained lease of the site and underwater surveys commenced
  11. 1971-1979 Frames, planking and beams seen and identified Limited excavations undertaken
  12. 1979 Mary Rose Trust formed. HRH Prince of Wales as President Full-time staff engaged
  13. 1979-1982 Ship totally excavated, recorded and prepared for recovery Decks, companionways, cabins and bulkheads dismantled and, together with numerous artifacts, brought ashore
  14. 11 October 1982 Ship raised on cradle and removed to Portsmouth Naval Base. Placed in No 3 Dock and process of conservation begun


  1. 1973 King Henry VII's Mary Rose - Alexander McKee
  2. 1982 How we found the Mary Rose - Alexander McKee
  3. 1982 The Story of the Mary Rose - Ernle Bradford
  4. 1982 The Mary Rose - Margaret Rule
  5. 1995 The Good Ship - Ian Friel
  6. 1998 Historic Shipwrecks - Valerie Fenwick & Alison Gale
  7. 1998 Safeguard of the Sea: A Naval History of Britain - Nicholas Rodger
  8. 2002 Letters from the Mary Rose - C Knighton & D Loades
  9. 2003 Sealed by Time - Peter Marsden
  10. 2003 For Future Generations - Peter Marsden
  11. 2005 Great Harry's Navy: How Henry VIII gave England Sea Power - Geoffrey Moorhouse
  12. 2005 Before the Mast: Life and Death Aboard the Mary Rose - J Gardiner
  13. 2010 Classic Boat Mary Rose Museum - £16.3m museum begins


  1. 1980 The National Heritage Memorial Fund awarded £100,000 to hwelp raise the hull
  2. 1981 The National Heritage Memorial Fund awarded £150,000 for raising the hull in two grants
  3. 1982 The National Heritage Memorial Fund awarded £250,000 for raising the hull
  4. 1983 The National Heritage Memorial Fund awarded £150,000 for artefact and hull conservation
  5. 1984 The National Heritage Memorial Fund awarded £200,000 for hull engineering
  6. 1984 The National Heritage Memorial Fund awarded £125,000 for artefact and hull conservation
  7. 1985 The National Heritage Memorial Fund awarded £75,000 for artefact and hull conservation
  8. 1986 The National Heritage Memorial Fund awarded £50,000 for artefact and hull conservation
  9. 1993 The National Heritage Memorial Fund awarded £100,000 for hull restoration
  10. 1995-1996 The Heritage Lottery Fund awarded £330,000 for preservation of the hull
  11. 1996-1997 The Heritage Lottery Fund awarded £25,875 for a feasability study
  12. 1997-1998 The Heritage Lottery Fund awarded £101,200 for refurbishment of the roof
  13. 1998-1999 The Heritage Lottery Fund awarded £107,600 for Development Phase Study
  14. 1998-1999 The Heritage Lottery Fund awarded £98,600 to complete the developemtn fo Phase I
  15. 2000-2001 The Heritage Lottery Fund awarded £488,000 for completion of the Phase I conservation programme
  16. 2000-2001 The Heritage Lottery Fund awarded £308,050 for a publication showing the analysis and dissemination of the vessel's excavation
  17. 2001-2002 The Heritage Lottery Fund awarded £87,900 for two temorary exhibitions on Tudor Life
  18. 2002-2003 The Heritage Lottery Fund awarded £6,066,000 for Phase II of the vessel's conservation
  19. 2003 A grant of £20,000 was given towards hull preservation by The Headley Trust
  20. 2004-2005 The Heritage Lottery Fund awarded £50,000 for a structual site survey
  21. 2006-2007 The Heritage Lottery Fund awarded £50,000 for a purpose built museum to unite the vessel and the artefacts
  22. 2008 A Sustainability Grant of £2,000 for book publication made from the Strategic Development Fund of National Historic Ships
  23. 2008 The Mary Rose Trust was awarded a grant of £25 million by the Heritage Lottery Fund towards the £35 million estimated cost of a new and sustainable museum to be built on the site of No 3 Dock in Portsmouth Historic Dockyard, where the story of the ship and all her artefacts will be presented and the vessel preserved for posterity
  24. 2010 A grant of  £75,000 was given towards the Wilinson Eyre Museum to house vessel and artefacts by The Headley Trust
  25. 2012-2013 The Heritage Lottery Fund awarded £1,000,000 for a purpose built musuem  to house the artefacts
