Previous names

  • 1964 - 1986 SRN5 (006) XW246 GH2041
Certificate no 3571
Status Registered
paula.palmer

Details

Function Experimental Craft
Location Lee on Solent
Vessel type Experimental
Current use Museum based
Available to hire Yes
Available for excursions No
Info required No

Construction

Builder Saunders Roe, Cowes, Isle of Wight
Built in 1963
Hull material Other metal
Rig None
Number of decks 1
Number of masts
Propulsion Motor
Number of engines 1
Primary engine type Gas turbine
Boiler type None
Boilermaker None

Dimensions

Breadth: Beam
23.00 feet (7.01 m)
Air Draft
12.92 feet (3.94 m)
Length: Overall
38.75 feet (11.81 m)
Tonnage: Gross
7.00

History

This vessel is an SRN5 or Warden Class Hovercraft that was built in 1963 and launched on 17 November 1964. It There were only 14 such craft built, and they were the very first production hovercraft in the world. This particular one (006) is the last remaining British built SRN5 in the UK. She had 18 seats and the most powerful power-to-weight ratio of any hovercraft. Her design led directly to the larger SRN6 with the same engine but with 38 seats. This was the first of the 'modern' hovercraft. SRN5 (006) was used extensively to showcase the hovercraft in numerous countries and even to NATO. In 1966, whilst carrying out a demostration at Auckland airport in New Zealand, she interrupted the demonstration to rescue a parachutist who had landed in the sea. In teh same year she appeared in British Hovercraft Corporation (BHC) colours at the Hovershow at Browndown.

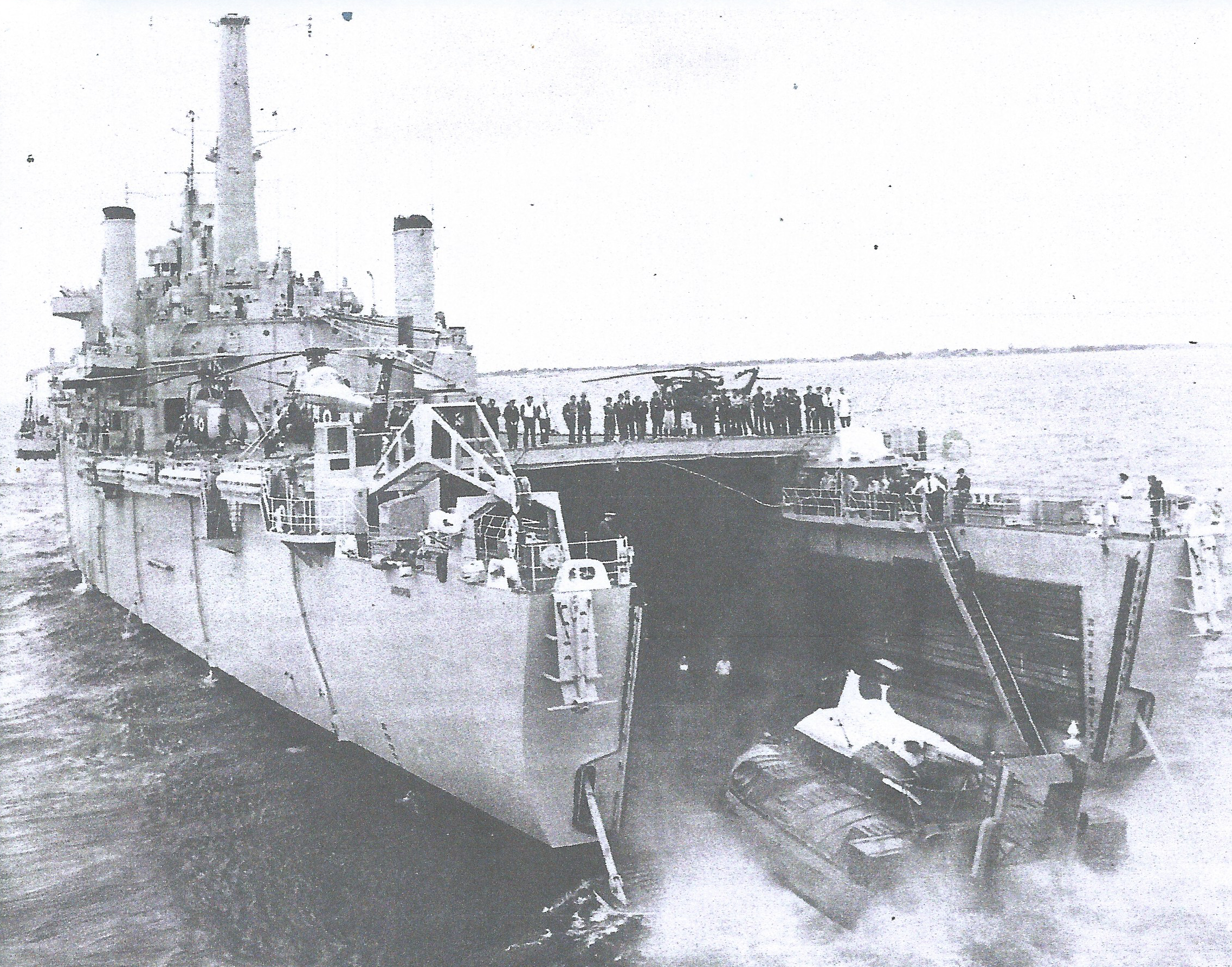

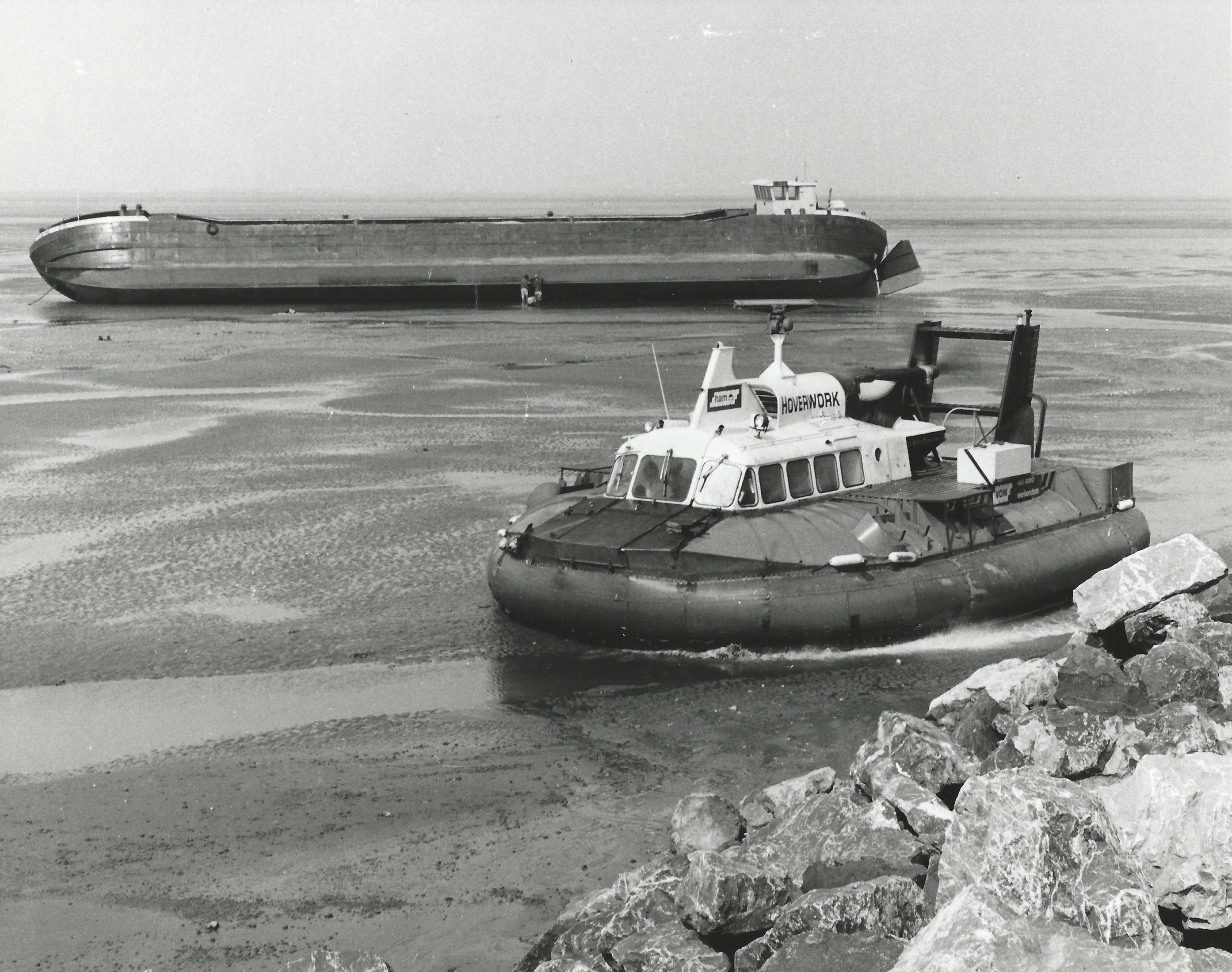

In 1968 she was purchased by the Interservice Hovercraft Unit (IHU)based at HMS Daedalus, and she stayed there until 1974 doing experimental work. She had dual controls fitted, and over 50 pilots were trained in her, many from the Army Hovercraft Unit based at Browndown. She was used to survey landing sites to be used in the event of a major collision or fire at sea. She also played an important role in the evaluation of the Optical Navigation Aid, which assisted the navigator to identify navigation marks. In 1969 she was deployed to investigate refuelling techniques from a ship. In 1971 she took part in an exercise with the assault ship HMS Fearless to assess docking manoeuvres. In 1974 she was purchased by Hoverwork for use on the Wash in the building of a reservoir. In 2013 she received a Engineering Heritage Award from the Institute of Mechanical Engineers.

Key dates

  • 1963

    Built by Saunders Roe on the Isle of Wight

  • 17 November 1964

    Launched, hired by Mitsubishi Heavy Industries and shipped to Japan

  • 1966

    Used to demonstrate capabilities of craft in New Zealand. Rescued parachutist during demonstration at Auckland Airport

  • 1968

    Purchased by Interservice Hovercraft Unit (IHU) and used to train pilots from Army Hovercraft Squadron

  • 1974

    Purchased by Hoverwork for use on Wash in building of reservoir

  • 1986

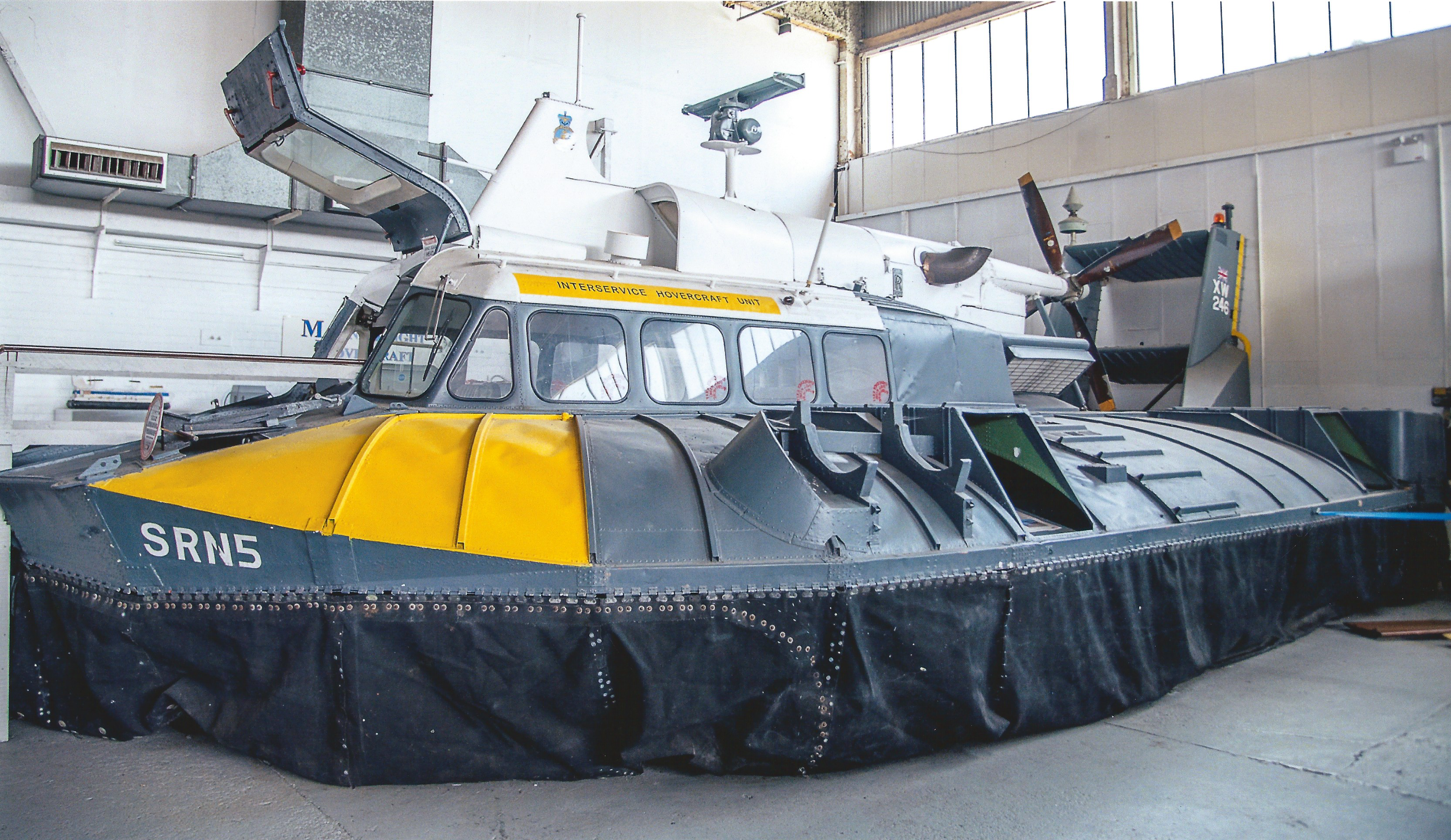

    Became property of the Hovercraft Museum Trust

Own this vessel?

If you are the owner of this vessel and would like to provide more details or updated information, please contact info@nationalhistoricships.org.uk
