Registration number
402
Status
National Historic Fleet
a12admin
Details
Function
Cargo Vessel
Subfunction
Barge
Location
Ellesmere Port
Current use
Museum based
Available to hire
No
Available for excursions
No
Construction
Builder
Guest, A H, Stourbridge
Built in
1918
Hull material
Concrete
Rig
None
Number of decks
1
Propulsion
Towed
Primary engine type
None
Boiler type
None
Boilermaker
None
Dimensions
Breadth: Beam
6.98 feet
(2.13m)
Depth
3.51 feet
(1.07m)
Length: Overall
69.97 feet
(21.34m)
History
CONCRETE CANAL BOAT was one of it is believed three prototype Birmingham Canal day boats built in 1918 by A.H. Guest of Amblecote near Stourbridge, local contract builders who normally built houses and other buildings such at schools. It is the second of the boats built and is called BCN No2. The use of concrete was intended as a means of overcoming the wartime shortages of steel and fabrication skills needed for conventional canal boats. However, with traditional steel bar reinforcement, the concrete had to be almost three inches thick, and the consequence was that the boats weighed almost twice as much as an iron boat. This meant that they could only carry about 24 tons, compared to over 31 tons for an iron boat of the same external dimensions. The boats did carry some trial loads of timber for guests, but it was found that the concrete was easily damaged in service and that patching up with cement was not always effective. By 1919, it was acknowledged that the experiment was not a success, and it is believed that the boats were laid up for several years. Then, in the mid 1930s, they were incorporated into bank protection works beside the Stuart Crystal glassworks on the Stourbridge Canal, not far from where they were built. This role continued until the summer of 1988, when British Waterways dug out one of the boats as part of the process to provide a new wharf and moorings for visitors to the glassworks, the other boats had to remain as they were beneath part of a building. The rescued boat was slightly damaged, but it was basically sound and was brought down the River Severn to be displayed at Gloucester. In 2005 the museum obtained a PRISM grant to repair the narrowboat and a concrete barge, the damage to the gunwales and bows of the boat were repaired by concrete specialists and it remains at the museum as a floating exhibit.
More information can be found Ten Floating Concrete Centenarians Edition 8 - 'BCN No. 2' (thecretefleet.com)
This vessel is a survivor from the First World War. You can read more about her wartime history by visiting our First World War: Britain's Surviving Vessels website www.ww1britainssurvivingvessels.org.uk.
Significance
1. What is the vessel’s ability to demonstrate history in her physical fabric?
Evidence for designs, functions, techniques, processes, styles, customs and habits or uses and associations in relation to events and people. How early, intact or rare these features are may impact on significance.

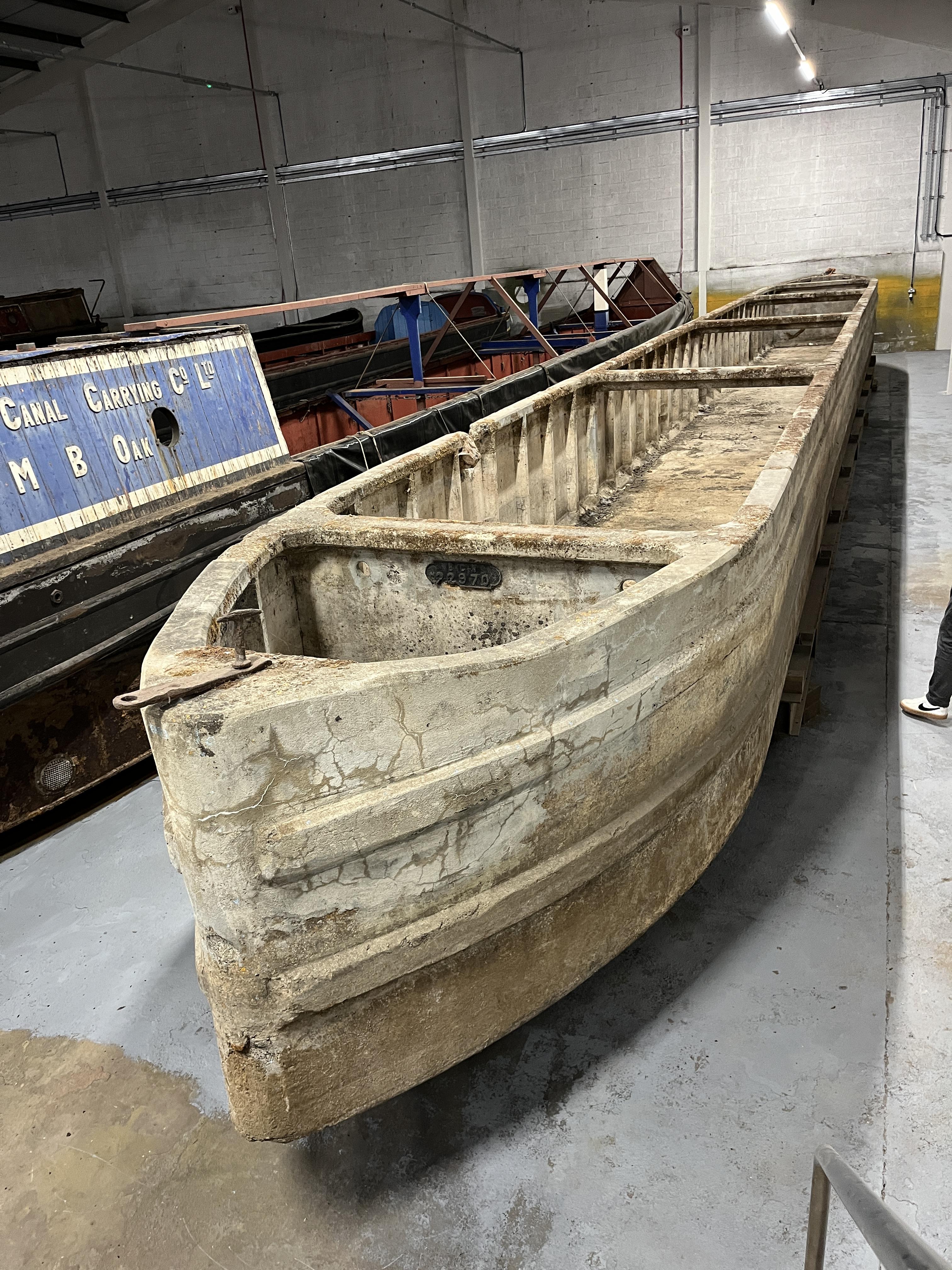

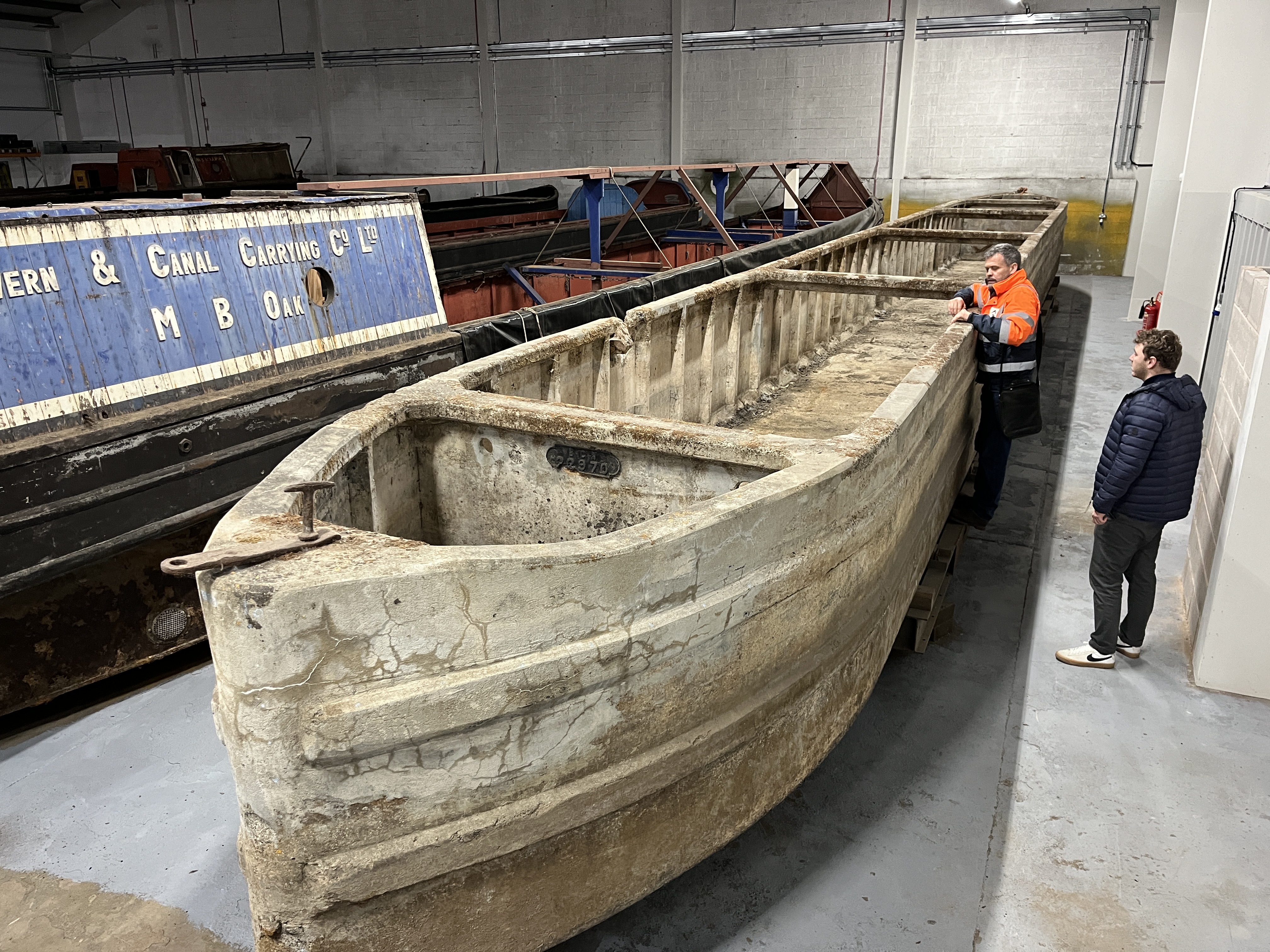

CONCRETE CANAL BOAT was designed as a prototype during wartime to be built with minimal impact on materials and skills needed elsewhere for the war effort. The use of concrete as a build material impacted on her design, making her much heavier with limited cargo carrying capacity. Her hull remains in its original form, although in 2005 damage to the gunwales and bows of the boat was repaired by concrete specialists.
2. What are the vessel’s associational links for which there is no physical evidence?
Associations with people or places. Off-ship research.
CONCRETE CANAL BOAT is a unique survivor of an experiment undertaken towards the end of the First World War in which novel boat building methods were tested, as a result of critical shortages of more traditional boat-building materials such as wood or steel. The Moreuse of concrete was intended as a means of overcoming the wartime shortages of steel and fabrication skills needed for conventional canal boats. CONCRETE CANAL BOAT took about one month to construct, and the cost was very much less than that of either a steel or wooden vessel. She was the second of three prototype Birmingham Canal day boats built in 1918 by local contract builders, A.H. Guest of Amblecote near Stourbridge. CONCRETE CANAL BOAT had limited use during her lifetime and this was solely on a local basis, carrying first some trial loads of timber for Guests and later being used for bank protection works in the mid-1930s. CONCRETE CANAL BOAT was recorded on the National Register of Historic Vessels in 1996 and is a member of the National Historic Fleet.
3. How does the vessel’s shape or form combine and contribute to her function?
Overall aesthetic impact of the vessel, her lines, material she was built from and her setting. Does she remain in her working environment?

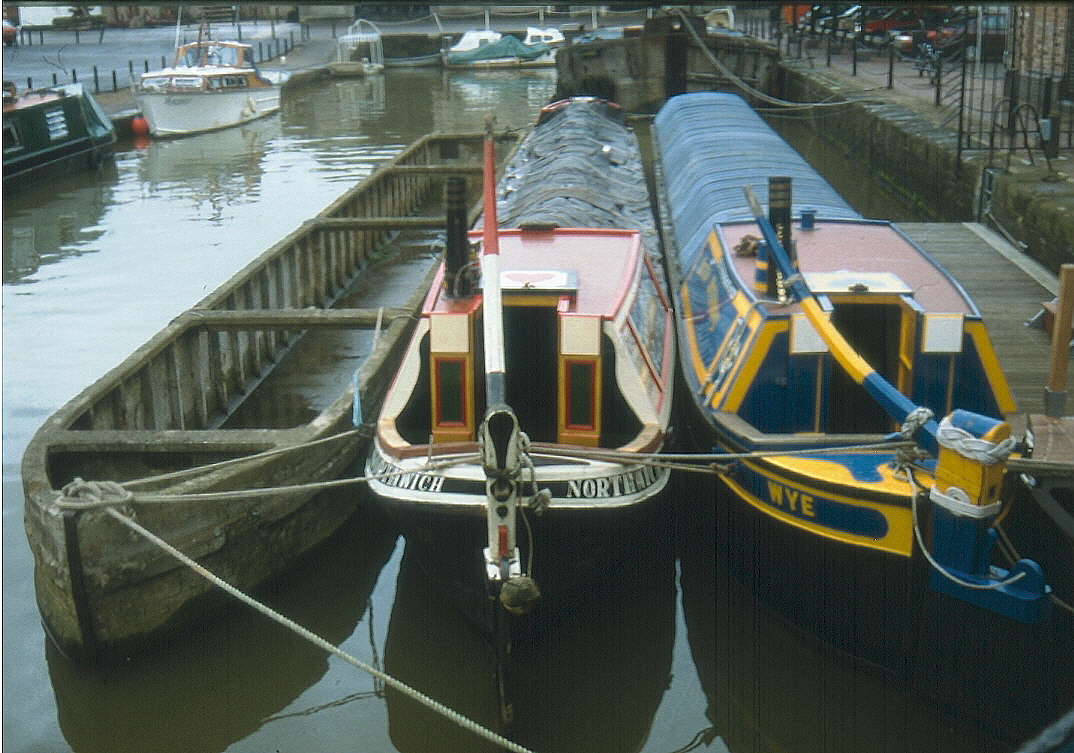

The overall dimensions of CONCRETE CANAL BOAT were constrained by the locks through which she had to pass. She was 70ft in length, 6ft 11in in width, and had a total moulded depth of 4 ft. The draught of water of the unloaded boat was about 14 inches, as compared to around 8 to 9 inches for a similar tonnage vessel constructed of wood or steel. The total weight of concrete and steel involved in her construction was about 13 tons. However, with traditional steel bar reinforcement, the concrete had to be almost 3 inches thick, and the consequence was that the boat weighed almost twice as much as an equivalent iron barge. This meant that she could only carry cargoes up to a maximum weight of about 24 tons, compared to over 31 tons for an iron barge of the same external dimensions. The boat was open, and she was described as a ‘monkey’ barge to distinguish her from similar barges with cabin accommodation. She has close associations with the West Midlands and Gloucester areas, and remains at the Gloucester Waterways Museum as a floating exhibit.
Source: NHS-UK team, 02 September 2015.
This statement was developed as part of the Heritage Lottery funded First World War project. http://www.ww1britainssurvivingvessels.org.uk/
Key dates
- 1918 Built by A H Guest, Stourbridge to carry cargo on British canals during the First World War
- 2011 Property of The National Waterways Museum Gloucester
Sources
Brouwer, Norman J, International Register of Historic Ships, Anthony Nelson, pp145, Edition 2, 1993
McDougall, Marilyn, The National Waterways Museum, National Waterways Museum, 1990
