Previous names

  • 1930 - 1964 Calshot
  • 1964 - 1984 Galway Bay

Details

Function Service Vessel
Subfunction Tug
Location NONE
Vessel type Tender
Archive reason Disposed
Current use Unknown
Available to hire No
Available for excursions No
Web address www.thecalshot.co.uk/

Construction

Builder Thornycroft, J I & Co Ltd, Woolston, Southampton
Built in 1929
Hull material Steel
Rig None
Number of decks 2
Number of masts 2
Propulsion Motor
Number of engines 1
Primary engine type Inboard diesel
Boiler type None
Boilermaker None

Dimensions

Breadth: Beam
32.98 feet (10.06m)
Depth
12.00 feet (3.66m)
Length: Overall
146.92 feet (44.81m)
Tonnage: Gross
684.00

History

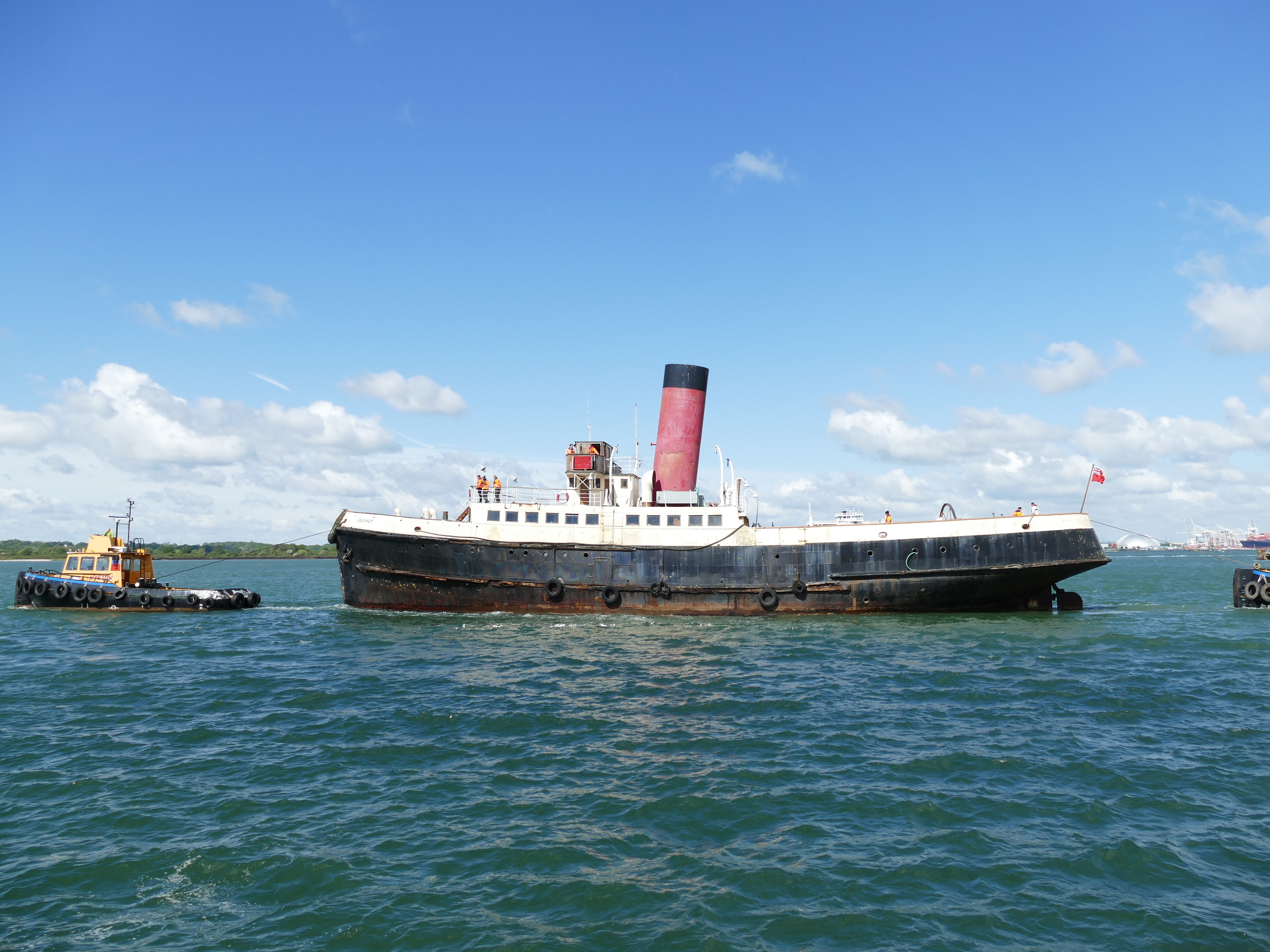

The port of Southampton had a requirement for tug/tenders to attend to liners anchored in Cowes Roads, and CALSHOT was completed in 1930 to fulfil this role in the fleet of the Southampton, Isle of Wight & South of England Royal Mail Steam Packet Company (or Red Funnel as it became known).  She was built by John I. Thornycroft & Co. Ltd, of Woolston, Southampton, launched on 4 November 1929, and fitted with triple-expansion steam engines, which were also built by Thornycroft. Principally used for local towing and tender duties, CALSHOT also served as a relief vessel on the Southampton to Ryde excursion service, and, on occasions, for salvage work in the Channel.

On 16 December 1940, she was requisitioned by the Admiralty and sent to Scapa Flow to tender the Home Fleet at anchorage. Two years later, she went to the Clyde tendering the QUEEN MARY and QUEEN ELIZABETH, amongst other liners, who were both on trooping duties.  In May 1944, she returned to the South coast and her home port of Southampton where she took part in the D-Day preparations. After an extensive refit, CALSHOT rejoined the Red Funnel fleet in June 1946 and continued in service until 1964, when replaced by a new motor tug/tender of the same name.

She was sold to Port & Liner Services (Ireland) Ltd, a subsidiary of the Holland America Line, converted to diesel and renamed GALWAY BAY.  She was based at Galway for tender work to the liners MAASDAM and RYNDAM, and local excursion services.  By 1971, she was owned by Galway Ferries Ltd and used as a ferry between Galway and the Aran Islands, as well as excursions, until the end of the 1985 season. In 1986, she was bought by Southampton City Council to be the centrepiece of a proposed maritime museum. This scheme did not proceed, and she remained in Southampton Docks.

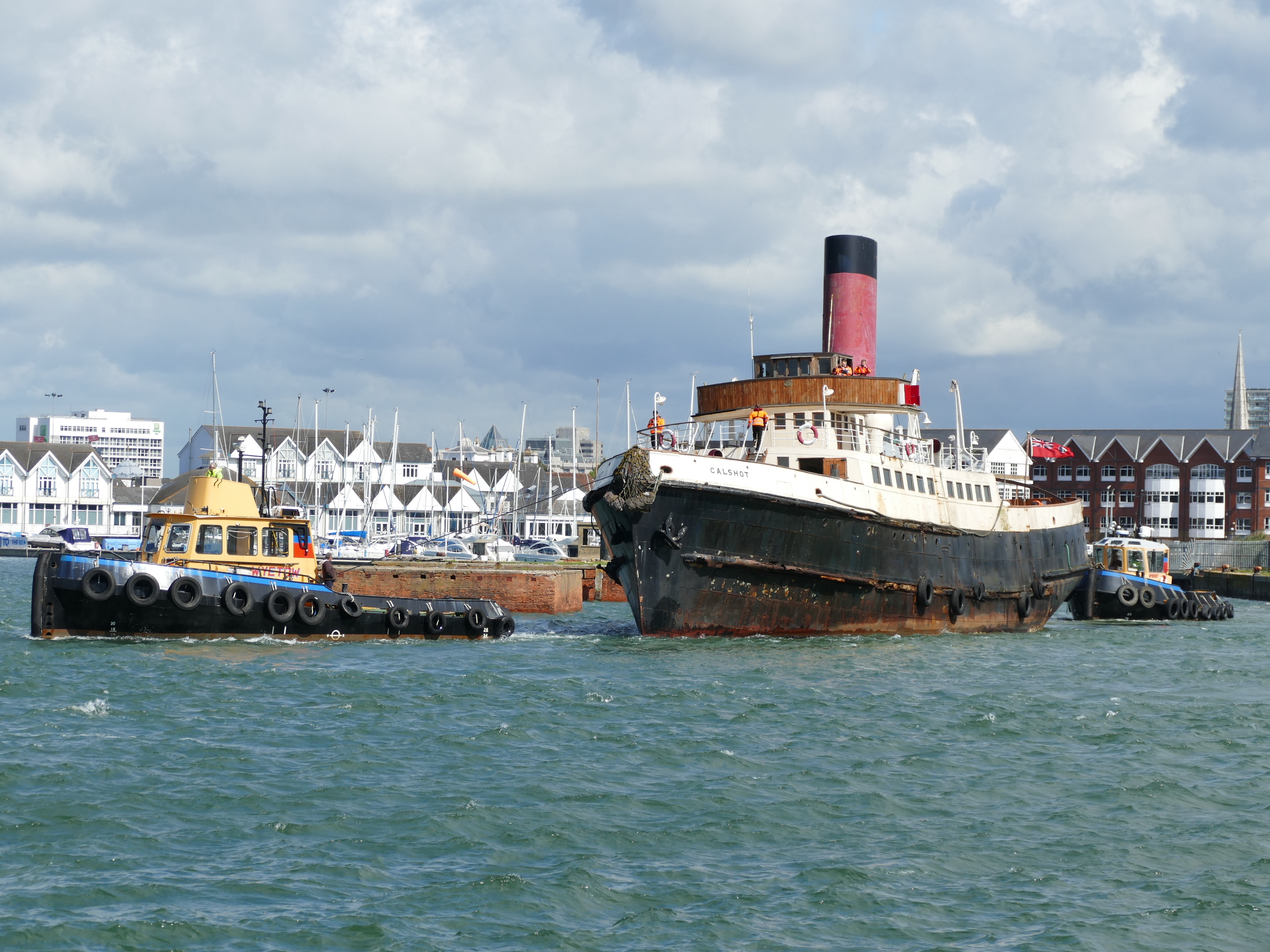

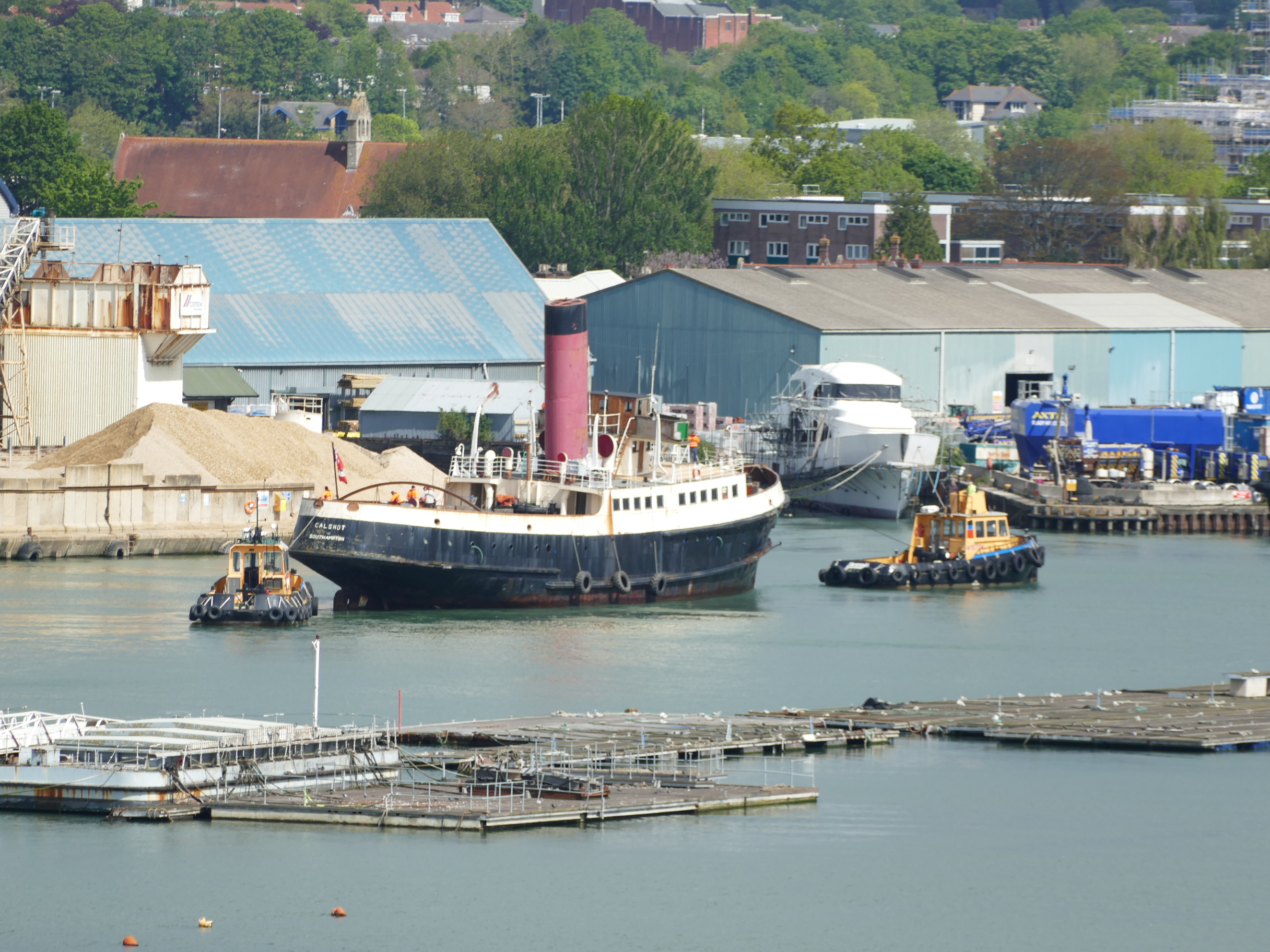

In 1997, the Tug Tender CALSHOT Trust was set up with the aim of restoring CALSHOT to her 1930s profile, including heightening her funnel. Maintenance work was undertaken by volunteers, with more extensive conservation being contingent on a successful application for major grant aid which remained unsecured.  In 2021, the Trust sold CALSHOT for £1 to Woodshack Ltd and she was towed to St James' Wharf for reconstruction work which would see her return to operation as a private yacht.

Escalating costs, combined with the vessel's condition once fully exposed in dry dock, rendered the project unviable and CALSHOT was sympathetically deconstructed using NHS-UK guidelines over Summer 2022, with work completing in October.   Many historically significant parts were saved and these will be repurposed or offered to local repositories and other historic vessels. CALSHOT was laser scanned and photographed, and a full archive survives.



Significance

Statement of Significance CALSHOT

1. What is the vessel’s ability to demonstrate history in her physical fabric?

Evidence for designs, functions, techniques, processes, styles, customs and habits or uses and associations in relation to events and people. How early, intact or rare these features are may impact on significance.

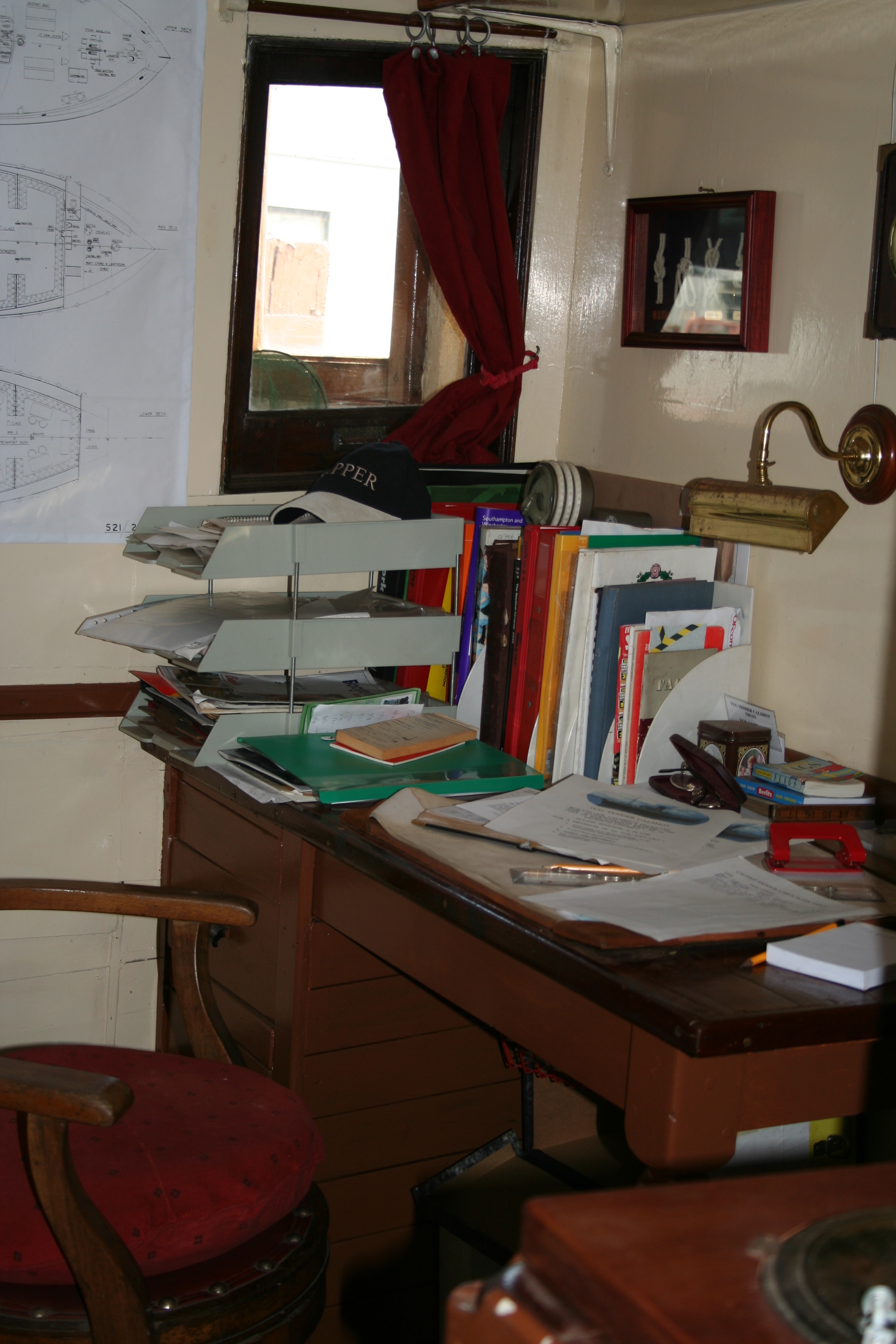

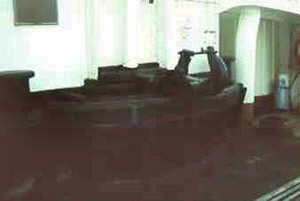

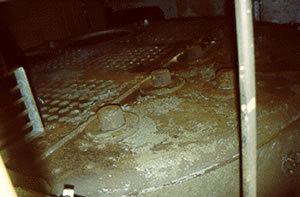

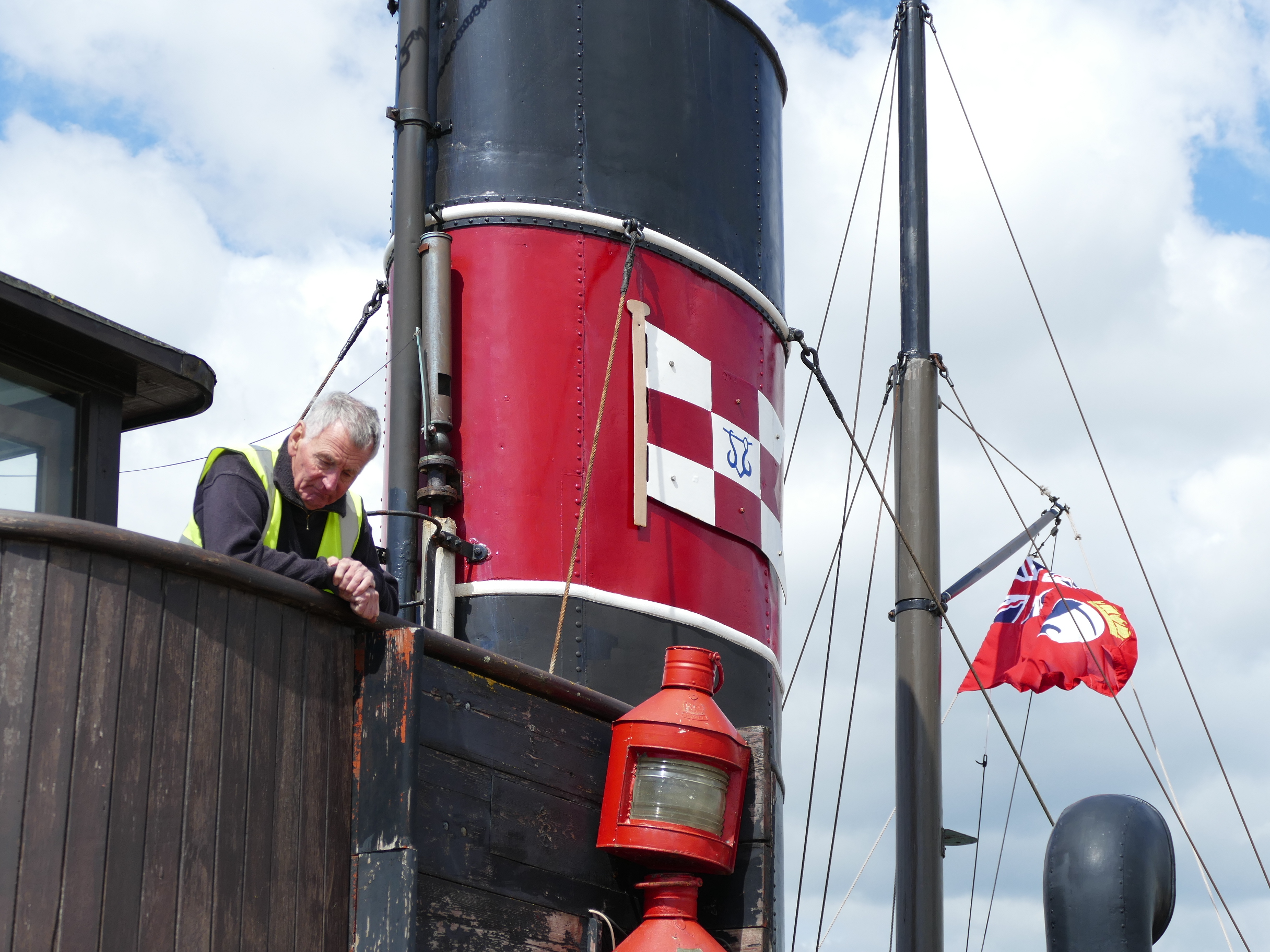

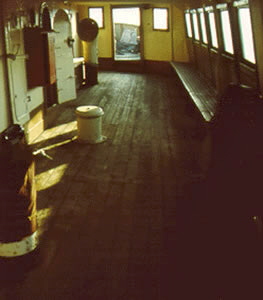

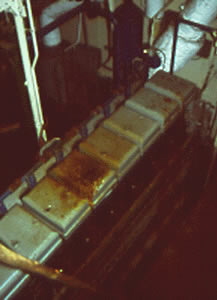

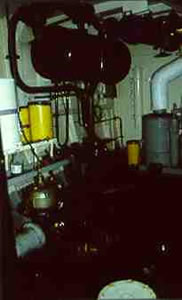

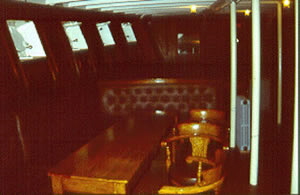

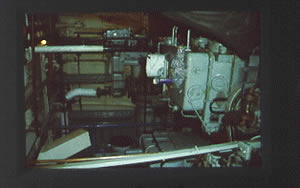

At build, CALSHOT was fitted with twin screw, triple expansion reciprocating steam engines which were replaced with Dutch twin diesels in 1964. As a result of the conversion, her distinctive funnel was considerably shortened. It was restored to its original height of 30 feet in 2008. Much of her classic interior remained including oak and mahogany companionways, the officers’ quarters with fitted furniture, the dining area with specially designed swivel seats, bespoke dining tables and original light fittings. Her first class passenger saloon with upholstered banquette seats and the bar were virtually as built and reflected the style of the 1930s period. At the end of the Second World War, CALSHOT was reconditioned and extra crew cabins were built in the second class accommodation area, signalling the demise of the class division. Her black and cream paintwork depicted the Red Funnel colours of her working life. A Scotch boiler built in 1928, which was used for ballast on CALSHOT, was of the exact material and dimensions as those on board the famous ocean liner TITANIC. The cast iron shell was intact with three furnaces remaining in place. CALSHOT also retained the same type of swivel chairs as those in Titanic’s second class dining saloon and the same Welin quadrant davits for her lifeboats.

2. What are the vessel’s associational links for which there is no physical evidence? Associations with people or places. Off-ship research.

CALSHOT had strong local connections to the port of Southampton where she spent more than 60 years of her life. She was the largest tug tender built by John I Thornycroft at Woolston for the Southampton, Isle of Wight & South of England Royal Mail Steam Packet Company and subsequently spent many years working for the Red Funnel Fleet. She served some of the great ocean liners including the White Star liner OLYMPIC, Cunard’s famous flagship RMS QUEEN MARY, RMS QUEEN ELIZABETH and the MAURITANIA. During this time, she carried world famous celebrities, film stars and politicians such as Sir Winston Churchill, Charlton Heston, Elizabeth Taylor, Cary Grant and Judy Garland. The Second World War saw her requisitioned by the Admiralty and appointed to tender the Home Fleet at anchor in Scapa Flow. She later took part in the D-Day preparations on the South Coast, towing sections of the famous Mulberry Harbour to France and acting as a non-assault headquarters ship for the Juno area of the invasion force. CALSHOT also had associations to Southern Ireland, operating out of Galway in the latter half of her working life first as a tender, then as a ferry and excursion vessel. Surviving documentary evidence includes an invitation from the vessel launch day and historic photographs of her in service. CALSHOT was a rare survivor of her type, the only similar UK vessels being the passenger tender NOMADIC and the steam tug DANIEL ADAMSON. She was included on the National Register of Historic Vessels in 2007 and awarded the status of being on the National Historic Fleet.

3. How does the vessel’s shape or form combine and contribute to her function? Overall aesthetic impact of the vessel, her lines, material she was built from and her setting. Does she remain in her working environment?

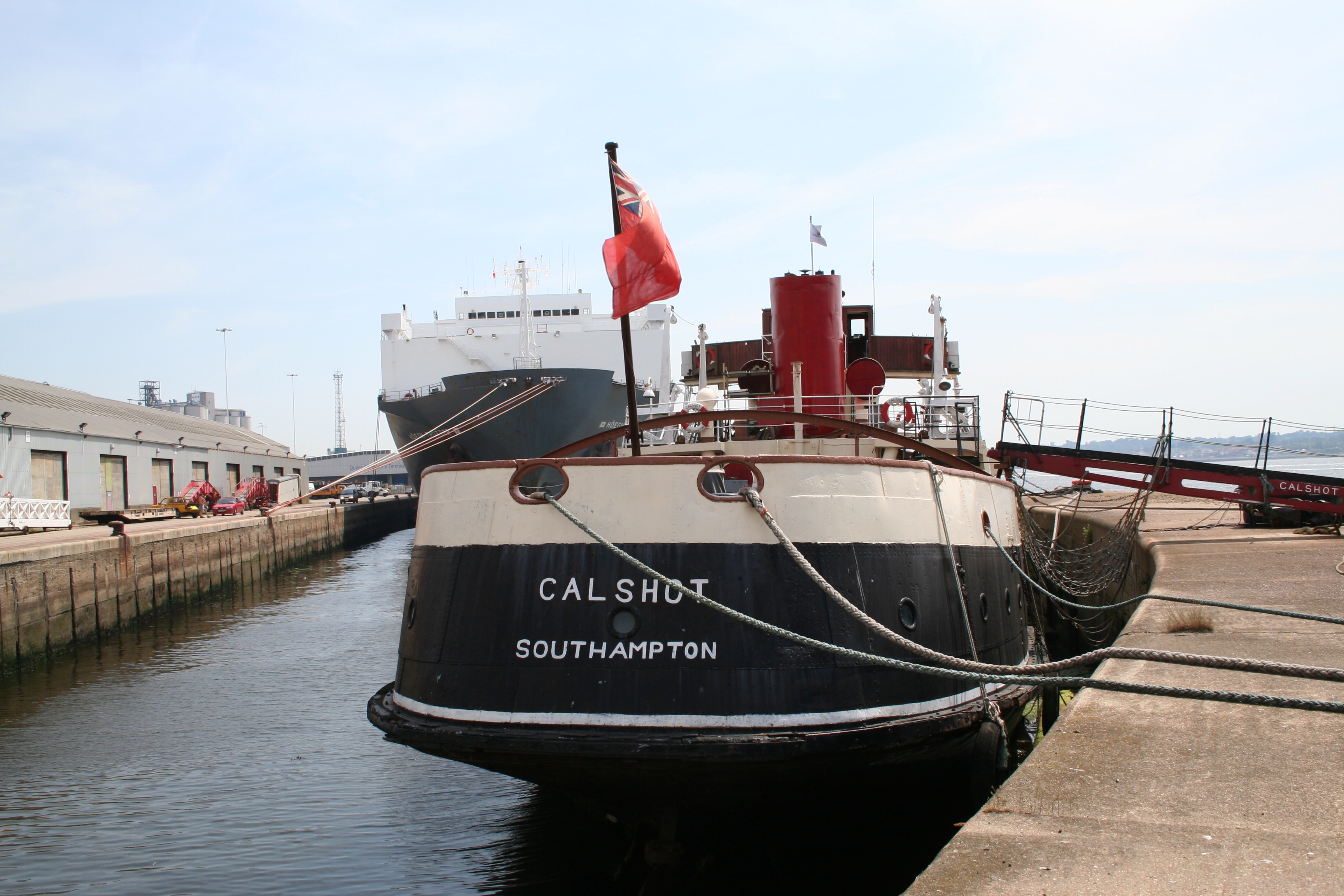

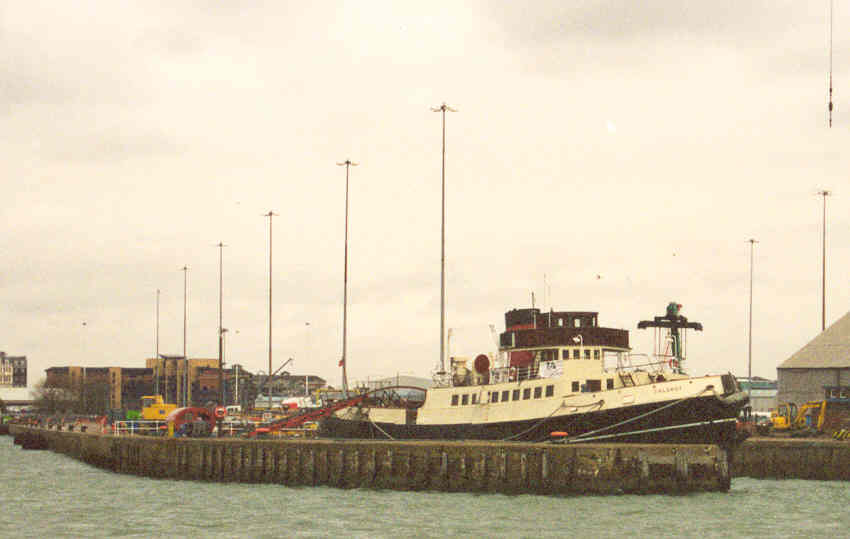

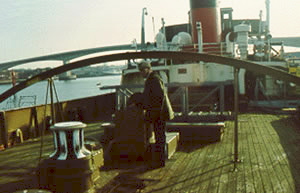

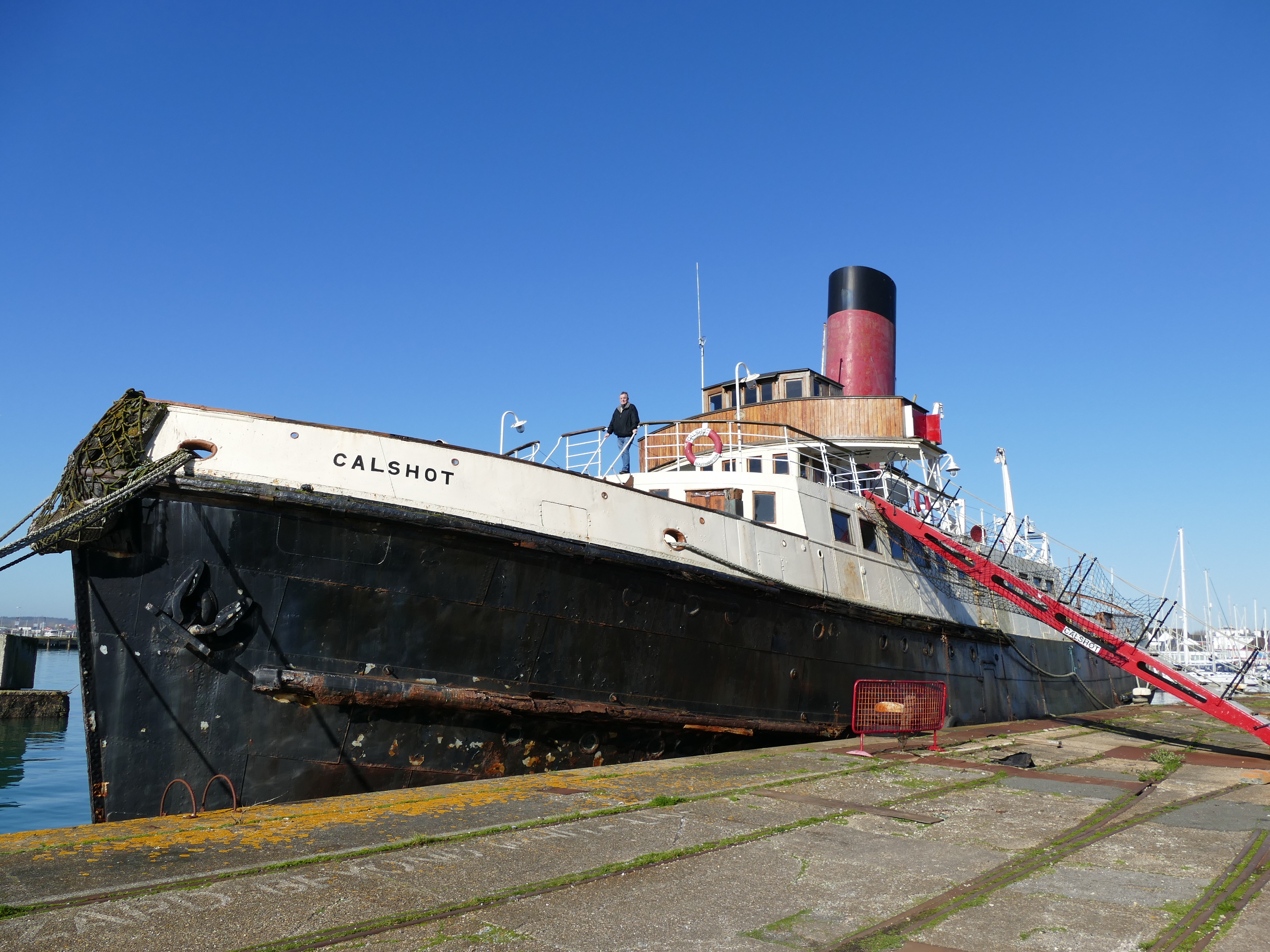

CALSHOT’s form and internal layout reflected her dual purpose function, operating both as a tug and a passenger tender. She was fitted with first and second class saloons, allowing her to carry 556 passengers down below, while her large timber-built fore and aft decks gave space for steerage passengers. Her riveted steel hull was strongly constructed to facilitate her work towing and manoeuvring liners in and out of port. Aesthetically, her robust external appearance was well suited to the practicalities of her role as a tug, but the quality of her interiors in terms of both design and craftsmanship were a true reflection of the class structure and society at the time of her build. CALSHOT was afloat in Southampton Docks for many years, before being dismantled at St James' Wharf in 2022.

Author: Hannah Cunliffe, Director, National Historic Ships UK

March 2019 (updated October 2022)

Key dates

  • 1929 Built Southampton as a tug/tender
  • 1929 – 1940 Principally used for local towing and tender duties, CALSHOT also served as a relief vessel on the Southampton to Ryde excursion service, and, on occasions, for salvage work in the Channel
  • 1940 Requisitioned by the Admiralty and sent to Scapa Flow to tender the Home Fleet at anchorage
  • 1942 Went to the Clyde tendering the QUEEN MARY and QUEEN ELIZABETH, amongst other liners, who were both on trooping duties
  • 2011

     April 2011 Calshot has moved to its new home in Trafalgar Dock, Southampton, to become the centre-piece for the planned Aeronautica Museum

  • 1944 Returned to the South coast and her home port of Southampton where she took part in the D-Day preparations
  • 1946 After an extensive refit, rejoined the Red Funnel fleet
  • 1946-1964 Served with the Red Funnel Fleet
  • 1964 Replaced by a new motor tug/tender of the same name Sold to Port & Liner Services (Ireland) Ltd, converted to diesel and renamed GALWAY BAY
  • 1964-1971 Based at Galway for tender work to the liners MAASDAM and RYNDAM and local excursion services
  • 1971 Sold to Galway Ferries Ltd and used as a ferry between Galway and the Aran Islands, as well as excursions, until the end of the 1985 season
  • 1986 Bought by Southampton City Council to be the centerpiece of a proposed maritime museum This scheme did not proceed, and she remained in Southampton Docks
  • 1977 The Tug Tender Calshot Trust was set up with the aim of restoring CALSHOT to her 1930s profile, including heightening her funnel

Grants

  • April 2019

    A Sustainability Grant of £1000 for supporting works was made from the Strategic Development Fund of National Historic Ships

  • October 2010

    A grant of £40,000 has been secured from the City of Sunderland S.I.P (Single Innovation Plan) for renovations. Source: current owners

  • April 2007 - March 2007

    A Sustainability Grant of £1000 for help with the restoration work was made from the Strategic Development Fund of National Historic Ships

  • 2006/07

    The Heritage Lottery Fund awarded £50,000 for developing the main application for restoration, conservation and development

Sources

Norman J Brouwer, International Register of Historic Ships (Edition 2, 1993) pub: Anthony Nelson
W Paul Clegg, Ships Monthly (September, 1986, pp24-28) Tug Tenders in the UK
Classic Boat (Feb, 2004) Scrap threat for Calshot
Transport Digest (Summer Edition 103, 2011) Calshot Connections

The Times (22 June 2019), D-Day ship selling for £1 to save it from scrapyard
